Bushel Plus Harvest Loss System
Bushel Plus Mini 20″
Features
- This is a terrific solution for plot and research combines – drumroll researchers and agronomists.
- The MINI is ideal for collecting samples in long stubble conditions with 30” row spacing (corn, sorghum, sunflowers, etc.)
- It fits between the wide stubble rows and works well with other implement options such as chaff decks.

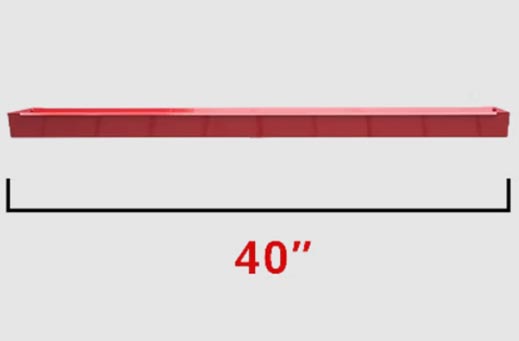

The Flagship 40″
Features
- It fits perfectly on the back axle, which allows you to check your losses from the rotor and the sieves.
- It is great in high stubble crops (with stripper headers, canola, hemp, corn, sunflower, etc.). It fits beneath the feeder house, to be kept safe and high enough away from the tall stubble compared to the back axle mounting point.
- When attached to the header, it allows you to understand your header losses as well as your losses while using a chaff spreader/chopper implement.
- It is a must-have for anyone that is harvesting grains and specialty crops.
- PRO-TIP: Use two FLAGSHIP solutions with our SMART DROP app and collect samples from the back axle and header at the same time. This allows you to truly understand your losses while harvesting in spread mode.
The Wide Setup 60″
Features
- This DROP PAN is for those growers and agriculturists that would like to take a slightly different approach to sample collection and combine calibration.
- It is great for collecting a sample from the entire width of the sieves while dropping straw and chaff in a windrow.
Mini Combines
Bushel Plus Mini Combine
Features
- A portable electric device for taking samples of wheat, barley, canola, sorghum, oats, soya, peas, field beans, and flax.
- This self-contained unit comes with 4 interchangeable concaves (no tools required), a lithium-ion battery and a variable-speed brushless motor.
- Samples collected are identical to a combine giving you the perfect sample size for moisture content tests. and quality analysis.
MAD Concaves
Split Frames
John Deere Split Frame
Key Features
- Split frame concave with interchangeable module inserts, transition lip bolted to front frame.
- Fits John Deere single rotor combines.
- Lighter and easier to install into combine than factory one piece concaves.
- Once installed it stays in the combine and 30lb modular concaves are swapped out within minutes with 2 bolts per insert.
New Holland Split Frame
Key Features
- Split frame concave with interchangeable module inserts.
- Fits New Holland CR combines.
- Lighter and easier to install into combine than factory one piece concaves.
- Once installed it stays in the combine and 30lb modular concaves are swapped out within minutes with 2 bolts per insert.
Concave Modules
.225 Concave
Key Features
- front position
- reduce dockage
- hard thresh crops
- wheat, flax, canary seed
.300 Concave
Key Features
- front position
- allows more seed out of concave reducing rotor loss
- large easy thresh cereals
.375 Concave
Key Features
- mostly second position but used in front position for large cereal crops that need some threshing
- all crops
.435 Concave
Key Features
- first and second position
- very easy thresh crops like hemp
- very large seed crops, chickpeas, faba beans
Finger Grate Concave
Key Features
- front position
- new design for shatter resistant canola
- minimal threshing
- increased separation
- canola, peas, barley, oats, sunflower, corn, and soybeans
Slotted Concave
Key Features
- front position
- no threshing, full separation
- no cracking
- edible beans, canola, sunflower
Round Bar Concave
Key Features
- both positions
- full separation
Alfalfa Concave
Key Features
- both positions
- specially designed
John Deere X9 Concave
Key Features
- .225 for front for hard thresh
- .435 for back for separation and front for easy threshing crops
Smart Pan System
The Mini 20″
Key Features
- This is a terrific solution for plot and research combines – drumroll researchers and agronomists.
- The MINI is ideal for collecting samples in long stubble conditions with 30” row spacing (corn, sorghum, sunflowers, etc.)
- It fits between the wide stubble rows and works well with other implement options such as chaff decks.
